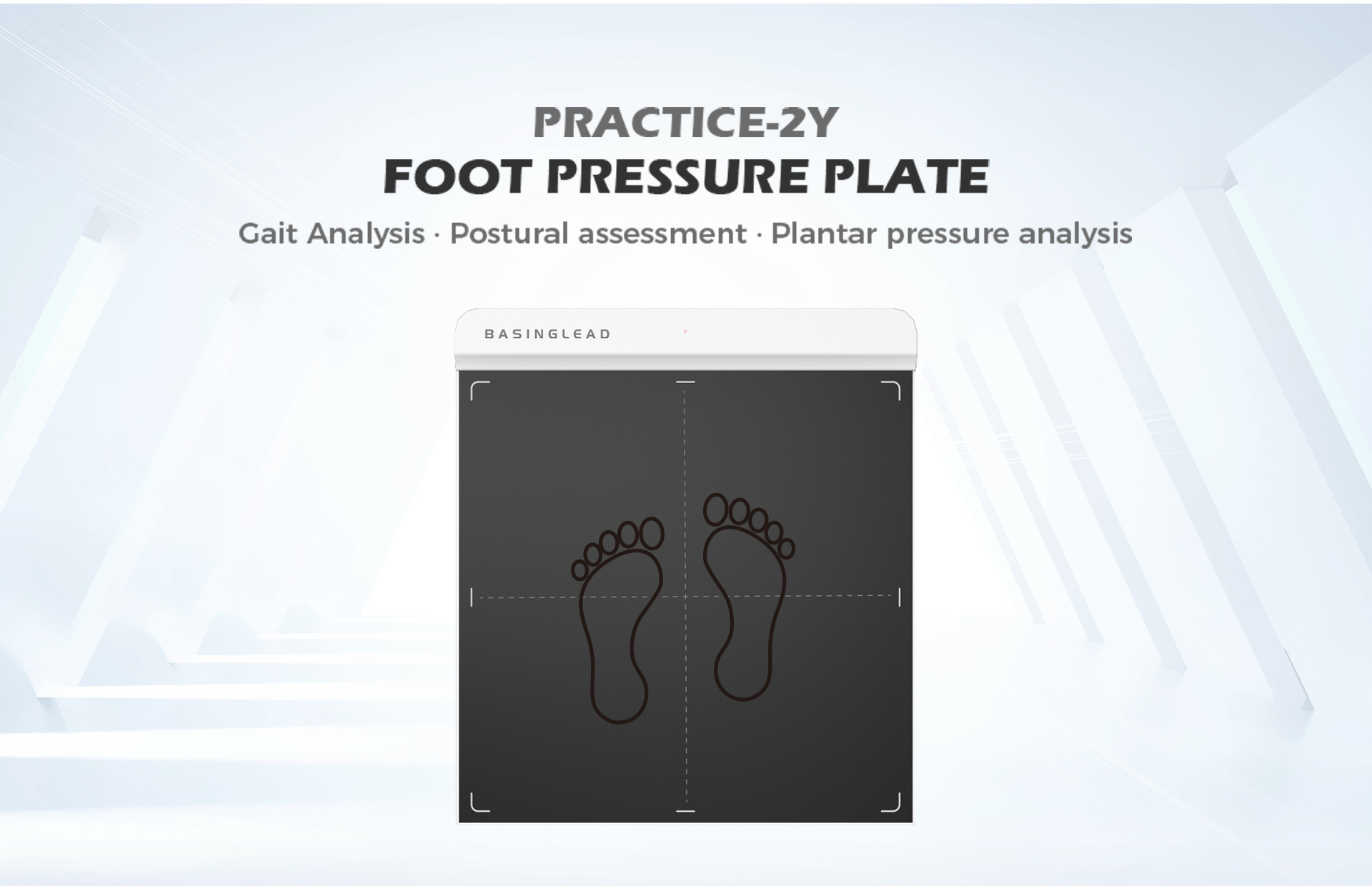

0.5-meter Pressure Plate Practice-2Y
Product Overview：

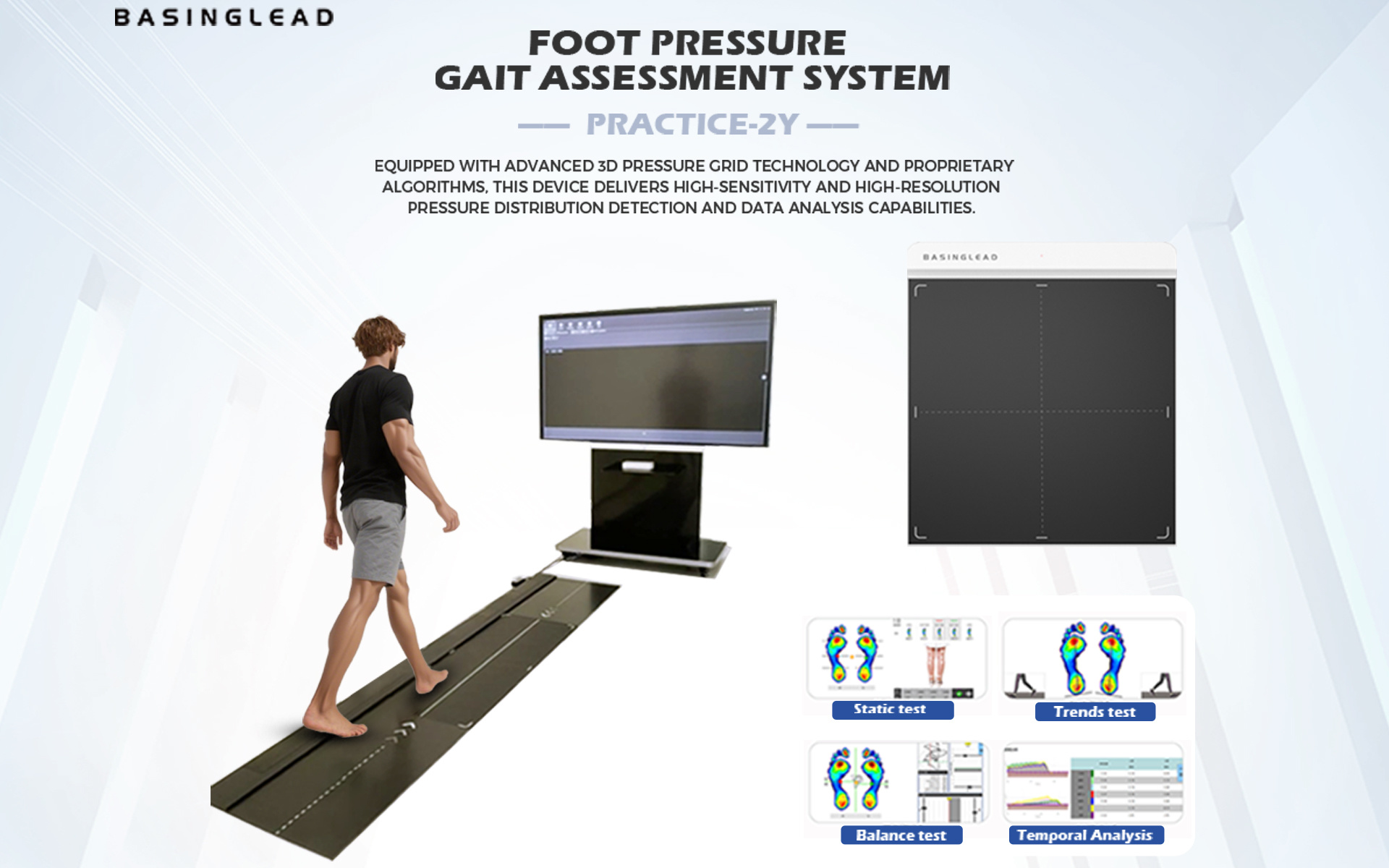

Pressure-Sensing Technology : The system adopts advanced 3D pressure grid technology combined with proprietary algorithms, offering high-sensitivity, high-resolution pressure distribution detection and data analysis capabilities.
Inquire Now
Product Details
▪ Product advantages
| Supported Functions | 2D and 3D visualization of plantar pressure distribution |
| Static measurement of foot length and width | |
| Arch index calculation | |
| Measurement of hallux valgus and foot eversion | |
| Balance testing | |
| Report generation and sharing of plantar pressure evaluation results | |

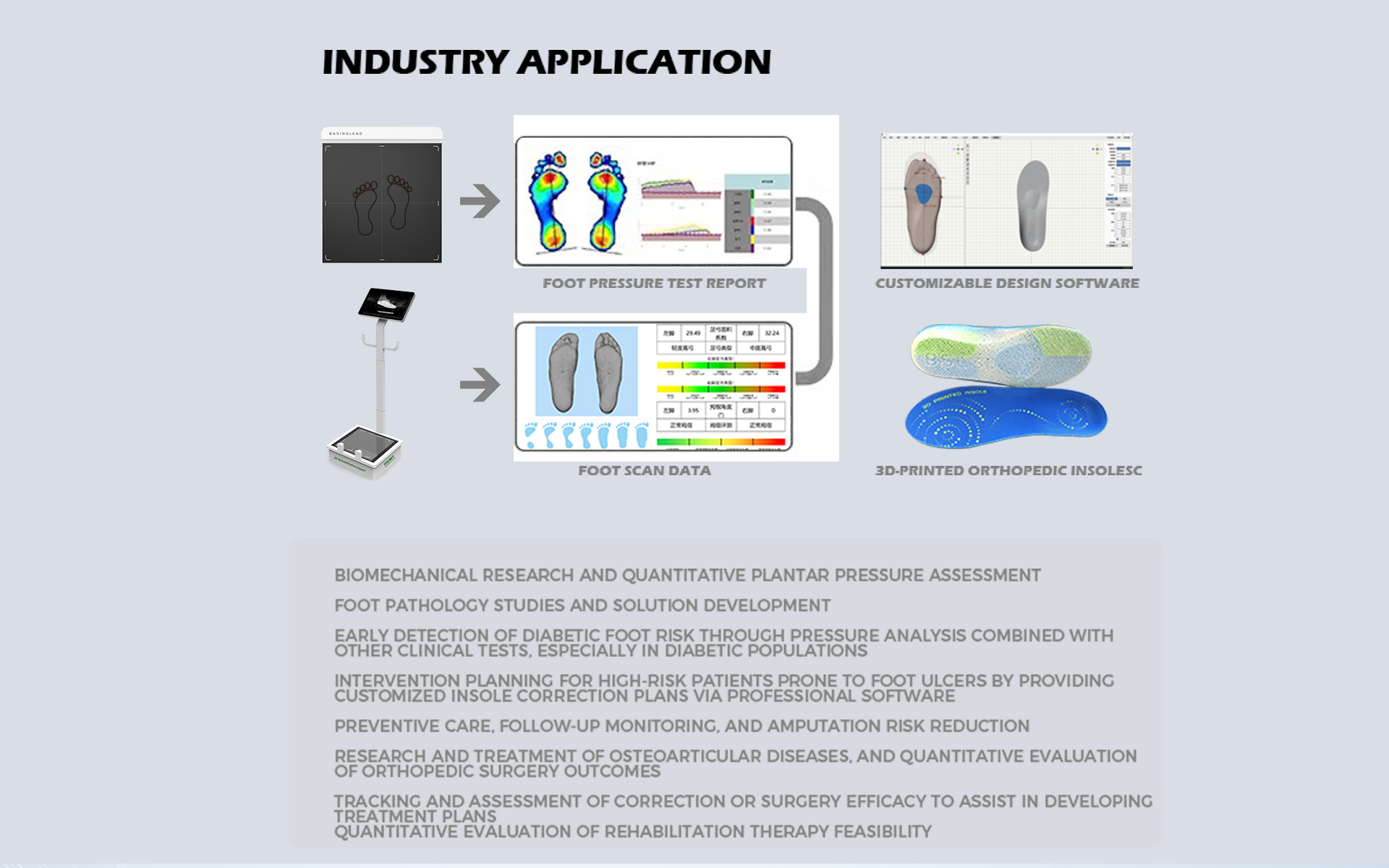

| Applications | Biomechanics research and quantitative evaluation of plantar pressure |
| Foot disease analysis and solution development | |
| Early detection of high-risk diabetic foot conditions by monitoring plantar pressure changes in combination with clinical examination | |
| Preventive intervention for high-risk ulcer patients through custom corrective insoles using professional analysis software, reducing amputation risks | |
| Research and treatment of osteoarticular diseases; quantitative assessment of orthopedic surgical outcomes |
|
| Evaluation and tracking of treatment efficacy before and after correction or surgery; support for treatment planning | |
| Quantitative assessment of rehabilitation feasibility |

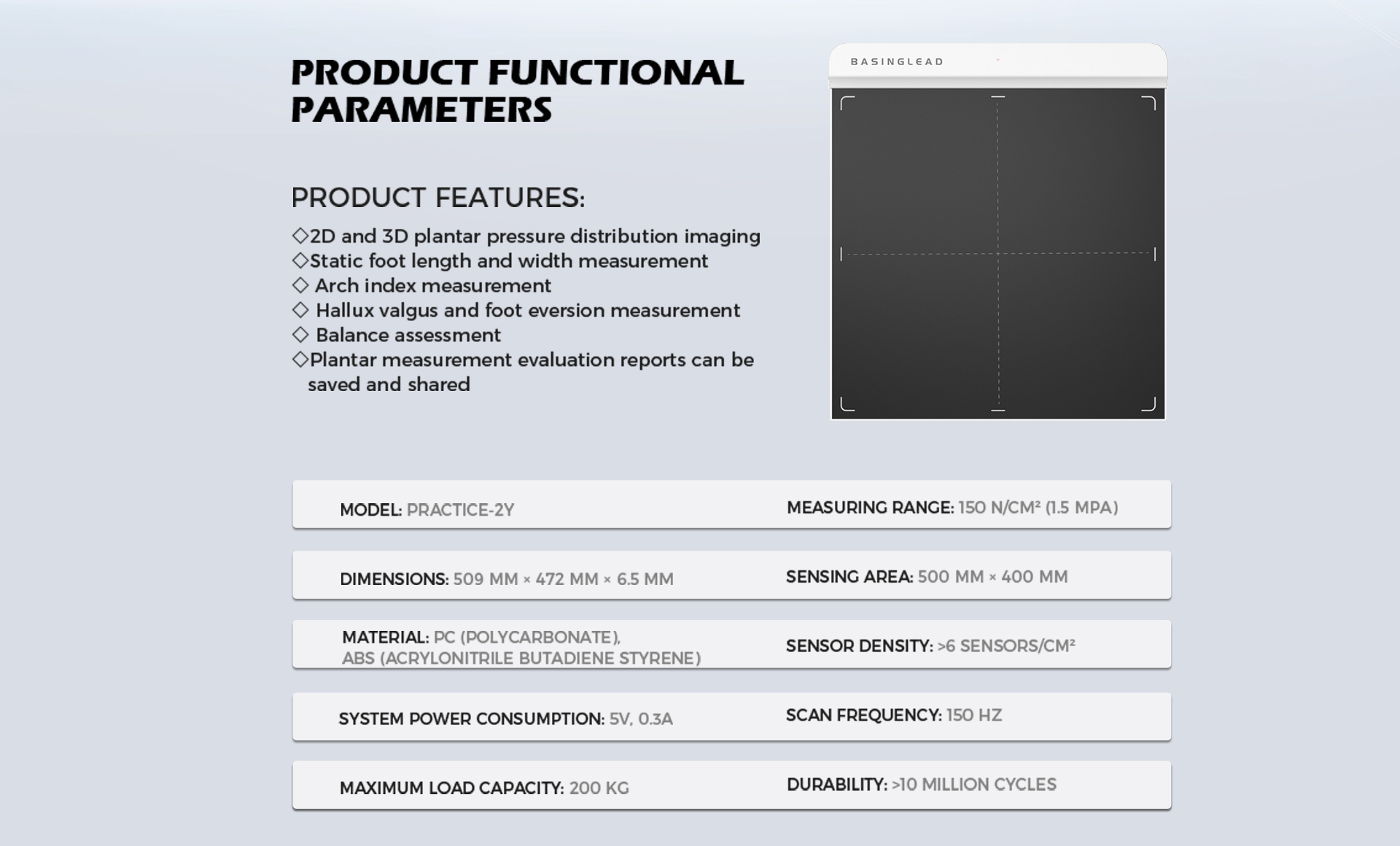

▪ Product Parameters
| Basic Information | Color: White |
| Device Interface | USB Type B |
| Data transmission and power supply interface | |
| Pressure Sensor | Measurement Range: 150 N/cm² (1.5 MPa) |
| Sensing Area: 500 mm × 400 mm | |
| Sensor Density: > 6 sensors/cm² | |
| Sampling Frequency: 150 Hz | |
| Durability: > 10 million cycles | |
| Pressure Detection Board | Model: Practice-2Y |
| Dimensions: 509 mm × 472 mm × 6.5 mm | |
| Materials: PC (Polycarbonate), ABS | |
| Power Consumption | Rated Power Supply: 5V, 0.3A |
| Maximum Load Capacity | Maximum Load: 200 kg |
| Accessories | USB Cable |
| Operating Environment | Operating Temperature: -20°C to 60°C |
| Operating Humidity: ≤ 85% RH |
